Deploying applications in VKS

–

7–10 minutes

read –

in ,
Diagram showing Two-Tier App Architecture with Web/App Tier and Database Tier server platforms.

Deploy a simple two-tier application

In the last post we prepared VKS, and we are now ready to try some more useful applications.

Lets start with a two-tier application with a web frontend and a db.

First i check if i have a suitable namespace to deploy to.I dont`t, so i create a new one called demoapp.

kubectl --context vcflab02:svc-tkg-domain-c10 create ns demoapp

Next is the Harbor Pull-Secret:

kubectl --context vcflab02:svc-tkg-domain-c10 -n demoapp create secret docker-registry harbor-tkg-pull \
--docker-server=harbor.vcf.local \
--docker-username='robot$tkg+tkg-pull' \
--docker-password='YOUR_PASSWORD' \
--docker-email='unused@local'

fill in your own user info that you created previous in Harbor and verify that your robot account can do both push and pull.

Then patch your default service account:

kubectl --context vcflab02:svc-tkg-domain-c10 -n demoapp patch serviceaccount default \
  --type=merge -p '{"imagePullSecrets":[{"name":"harbor-tkg-pull"}]}'

and verify:

kubectl --context vcflab02:svc-tkg-domain-c10 -n demoapp get secret
kubectl --context vcflab02:svc-tkg-domain-c10 -n demoapp get sa default -o yaml

Now we are ready to run our script demoapp.sh

  1. deploy database
  2. create internal DB service
  3. initialize sample data
  4. deploy web app
  5. create LoadBalancer service for web app
  6. wait for LB IP
  7. create DNS record

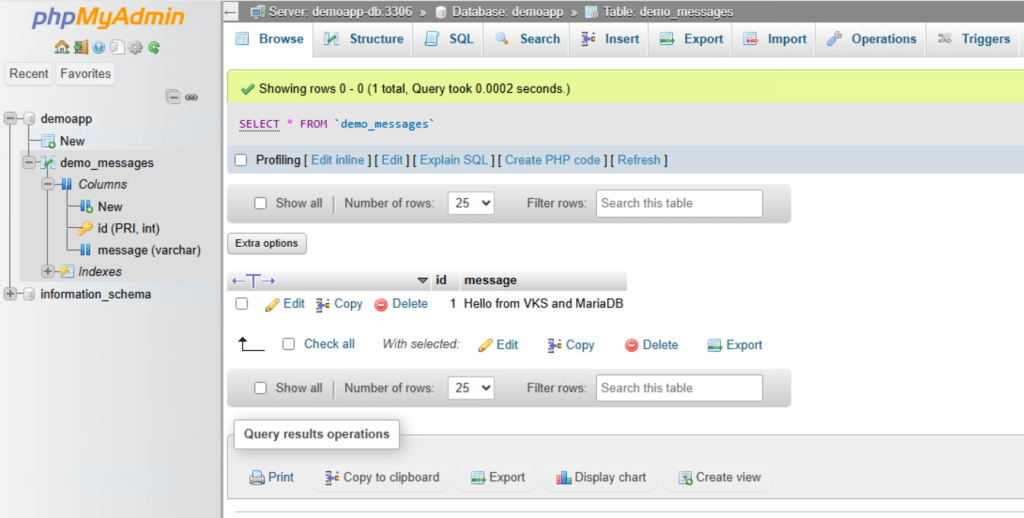

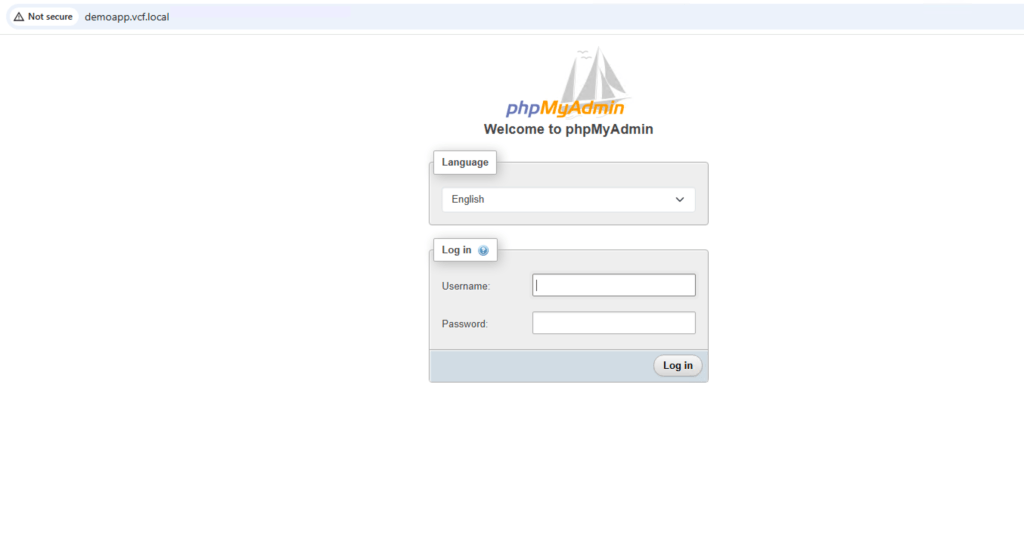

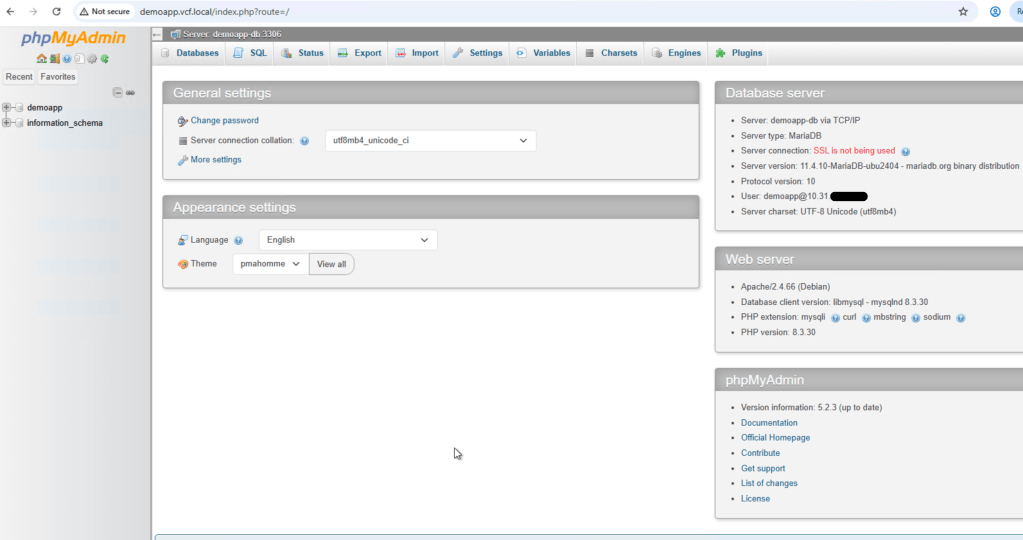

  8. testing in browser

With Harbor access and image pull already working, the next step is to deploy a more realistic application. In this example, I use a simple two-tier setup with phpMyAdmin as the web frontend and MariaDB as the backend database. The web tier is exposed through its own Kubernetes LoadBalancer service and external IP, while the database remains internal only through a ClusterIP service.

This is a useful pattern because it reflects how many real applications are structured: the frontend is published externally, while the database is kept private inside the cluster. At the end of the script, the assigned LoadBalancer IP is printed so a DNS record such as demoapp.vcf.local can be created afterwards.

  • uses the base context vcflab02 instead of expecting vcflab02:demoapp
  • deploys to a dedicated namespace, for example demoapp
  • uses an FQDN, for example demoapp.vcf.local
  • waits for an assigned LoadBalancer IP
  • prints the DNS record you need to create at the end
#!/usr/bin/env bash
set -Eeuo pipefail
source /root/bootstrap/00-config.sh
log(){ echo "[INFO]  $*"; }
warn(){ echo "[WARN]  $*" >&2; }
die(){ echo "[ERROR] $*" >&2; exit 1; }
[[ "${EUID}" -eq 0 ]] || die "Run as root."
command -v kubectl >/dev/null 2>&1 || die "kubectl not found. Run 02-base-tools.sh first."
command -v docker  >/dev/null 2>&1 || die "docker not found. Docker is required for image mirroring."
# Force base context for this environment
VCF_CONTEXT_NAME="${VCF_CONTEXT_NAME:-vcflab03}"
# Demo app settings
DEMO_NAME="${DEMO_NAME:-demoapp}"
DEMO_NAMESPACE="${DEMO_NAMESPACE:-demoapp}"
DEMO_FQDN="${DEMO_FQDN:-demoapp.vcf.local}"
# Upstream images
UPSTREAM_DB_IMAGE="${UPSTREAM_DB_IMAGE:-mariadb:11.4}"
UPSTREAM_WEB_IMAGE="${UPSTREAM_WEB_IMAGE:-phpmyadmin:5-apache}"
# Images in Harbor
DEMO_DB_IMAGE="${DEMO_DB_IMAGE:-${HARBOR_FQDN}/${HARBOR_PROJECT}/mariadb:11.4}"
DEMO_WEB_IMAGE="${DEMO_WEB_IMAGE:-${HARBOR_FQDN}/${HARBOR_PROJECT}/phpmyadmin:5-apache}"
# Database settings
DEMO_DB_NAME="${DEMO_DB_NAME:-demoapp}"
DEMO_DB_USER="${DEMO_DB_USER:-demoapp}"
DEMO_DB_PASSWORD="${DEMO_DB_PASSWORD:-ChangeMe123!}"
DEMO_DB_ROOT_PASSWORD="${DEMO_DB_ROOT_PASSWORD:-ChangeRoot123!}"
# Storage
DEMO_DB_STORAGE_SIZE="${DEMO_DB_STORAGE_SIZE:-2Gi}"
DEMO_STORAGE_CLASS="${DEMO_STORAGE_CLASS:-management-storage-policy-thin}"
# Optional static LB IP. Leave empty for auto-assignment.
DEMO_LB_IP="${DEMO_LB_IP:-}"
# Auto mirror required images into Harbor
AUTO_PUSH_IMAGES="${AUTO_PUSH_IMAGES:-true}"
# Use base supervisor context
ctx="${VCF_CONTEXT_NAME}"
ensure_namespace_exists() {
  kubectl --context "$ctx" get ns "$DEMO_NAMESPACE" >/dev/null 2>&1 \
    || die "Namespace ${DEMO_NAMESPACE} not found. Create it first."
}
show_input_values() {
  log "Using values:"
  echo "  VCF_CONTEXT_NAME      = ${VCF_CONTEXT_NAME}"
  echo "  DEMO_NAME            = ${DEMO_NAME}"
  echo "  DEMO_NAMESPACE       = ${DEMO_NAMESPACE}"
  echo "  DEMO_FQDN            = ${DEMO_FQDN}"
  echo "  UPSTREAM_DB_IMAGE    = ${UPSTREAM_DB_IMAGE}"
  echo "  UPSTREAM_WEB_IMAGE   = ${UPSTREAM_WEB_IMAGE}"
  echo "  DEMO_DB_IMAGE        = ${DEMO_DB_IMAGE}"
  echo "  DEMO_WEB_IMAGE       = ${DEMO_WEB_IMAGE}"
  echo "  DEMO_DB_NAME         = ${DEMO_DB_NAME}"
  echo "  DEMO_DB_USER         = ${DEMO_DB_USER}"
  echo "  DEMO_DB_STORAGE_SIZE = ${DEMO_DB_STORAGE_SIZE}"
  echo "  DEMO_STORAGE_CLASS   = ${DEMO_STORAGE_CLASS}"
  echo "  AUTO_PUSH_IMAGES     = ${AUTO_PUSH_IMAGES}"
  if [[ -n "${DEMO_LB_IP}" ]]; then
    echo "  DEMO_LB_IP           = ${DEMO_LB_IP}"
  else
    echo "  DEMO_LB_IP           = <auto-assigned>"
  fi
}
docker_login_harbor() {
  log "Logging in to Harbor"
  echo "${HARBOR_ROBOT_PASSWORD}" | docker login "${HARBOR_FQDN}" -u "${HARBOR_ROBOT_USER}" --password-stdin >/dev/null
}
image_exists_in_harbor() {
  local image="$1"
  docker manifest inspect "${image}" >/dev/null 2>&1
}
mirror_image_to_harbor() {
  local upstream_image="$1"
  local harbor_image="$2"
  if image_exists_in_harbor "${harbor_image}"; then
    log "Image already exists in Harbor: ${harbor_image}"
    return 0
  fi
  log "Image not found in Harbor, mirroring ${upstream_image} -> ${harbor_image}"
  docker pull "${upstream_image}"
  docker tag "${upstream_image}" "${harbor_image}"
  docker push "${harbor_image}"
}
ensure_demo_images() {
  if [[ "${AUTO_PUSH_IMAGES}" != "true" ]]; then
    log "AUTO_PUSH_IMAGES=false, skipping automatic image mirroring"
    return
  fi
  docker_login_harbor
  mirror_image_to_harbor "${UPSTREAM_DB_IMAGE}" "${DEMO_DB_IMAGE}"
  mirror_image_to_harbor "${UPSTREAM_WEB_IMAGE}" "${DEMO_WEB_IMAGE}"
}
deploy_demoapp() {
  log "Deploying ${DEMO_NAME} into namespace ${DEMO_NAMESPACE}"
  if [[ -n "${DEMO_LB_IP}" ]]; then
    cat <<YAML | kubectl --context "$ctx" -n "$DEMO_NAMESPACE" apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: ${DEMO_NAME}-db-secret
type: Opaque
stringData:
  MARIADB_ROOT_PASSWORD: "${DEMO_DB_ROOT_PASSWORD}"
  MARIADB_DATABASE: "${DEMO_DB_NAME}"
  MARIADB_USER: "${DEMO_DB_USER}"
  MARIADB_PASSWORD: "${DEMO_DB_PASSWORD}"
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: ${DEMO_NAME}-db-init
data:
  01-init.sql: |
    CREATE TABLE IF NOT EXISTS demo_messages (
      id INT AUTO_INCREMENT PRIMARY KEY,
      message VARCHAR(255) NOT NULL
    );
    INSERT INTO demo_messages (message)
    VALUES ('Hello from VKS and MariaDB')
    ON DUPLICATE KEY UPDATE message=VALUES(message);
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ${DEMO_NAME}-db-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: ${DEMO_STORAGE_CLASS}
  resources:
    requests:
      storage: ${DEMO_DB_STORAGE_SIZE}
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ${DEMO_NAME}-db
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ${DEMO_NAME}-db
  template:
    metadata:
      labels:
        app: ${DEMO_NAME}-db
    spec:
      containers:
      - name: mariadb
        image: ${DEMO_DB_IMAGE}
        imagePullPolicy: Always
        ports:
        - containerPort: 3306
        envFrom:
        - secretRef:
            name: ${DEMO_NAME}-db-secret
        volumeMounts:
        - name: db-data
          mountPath: /var/lib/mysql
        - name: db-init
          mountPath: /docker-entrypoint-initdb.d
      volumes:
      - name: db-data
        persistentVolumeClaim:
          claimName: ${DEMO_NAME}-db-pvc
      - name: db-init
        configMap:
          name: ${DEMO_NAME}-db-init
---
apiVersion: v1
kind: Service
metadata:
  name: ${DEMO_NAME}-db
spec:
  type: ClusterIP
  selector:
    app: ${DEMO_NAME}-db
  ports:
  - port: 3306
    targetPort: 3306
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ${DEMO_NAME}-web
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ${DEMO_NAME}-web
  template:
    metadata:
      labels:
        app: ${DEMO_NAME}-web
    spec:
      containers:
      - name: phpmyadmin
        image: ${DEMO_WEB_IMAGE}
        imagePullPolicy: Always
        ports:
        - containerPort: 80
        env:
        - name: PMA_HOST
          value: ${DEMO_NAME}-db
        - name: PMA_PORT
          value: "3306"
        - name: UPLOAD_LIMIT
          value: "64M"
---
apiVersion: v1
kind: Service
metadata:
  name: ${DEMO_NAME}-web-lb
spec:
  type: LoadBalancer
  loadBalancerIP: ${DEMO_LB_IP}
  selector:
    app: ${DEMO_NAME}-web
  ports:
  - port: 80
    targetPort: 80
YAML
  else
    cat <<YAML | kubectl --context "$ctx" -n "$DEMO_NAMESPACE" apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: ${DEMO_NAME}-db-secret
type: Opaque
stringData:
  MARIADB_ROOT_PASSWORD: "${DEMO_DB_ROOT_PASSWORD}"
  MARIADB_DATABASE: "${DEMO_DB_NAME}"
  MARIADB_USER: "${DEMO_DB_USER}"
  MARIADB_PASSWORD: "${DEMO_DB_PASSWORD}"
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: ${DEMO_NAME}-db-init
data:
  01-init.sql: |
    CREATE TABLE IF NOT EXISTS demo_messages (
      id INT AUTO_INCREMENT PRIMARY KEY,
      message VARCHAR(255) NOT NULL
    );
    INSERT INTO demo_messages (message)
    VALUES ('Hello from VKS and MariaDB')
    ON DUPLICATE KEY UPDATE message=VALUES(message);
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ${DEMO_NAME}-db-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: ${DEMO_STORAGE_CLASS}
  resources:
    requests:
      storage: ${DEMO_DB_STORAGE_SIZE}
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ${DEMO_NAME}-db
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ${DEMO_NAME}-db
  template:
    metadata:
      labels:
        app: ${DEMO_NAME}-db
    spec:
      containers:
      - name: mariadb
        image: ${DEMO_DB_IMAGE}
        imagePullPolicy: Always
        ports:
        - containerPort: 3306
        envFrom:
        - secretRef:
            name: ${DEMO_NAME}-db-secret
        volumeMounts:
        - name: db-data
          mountPath: /var/lib/mysql
        - name: db-init
          mountPath: /docker-entrypoint-initdb.d
      volumes:
      - name: db-data
        persistentVolumeClaim:
          claimName: ${DEMO_NAME}-db-pvc
      - name: db-init
        configMap:
          name: ${DEMO_NAME}-db-init
---
apiVersion: v1
kind: Service
metadata:
  name: ${DEMO_NAME}-db
spec:
  type: ClusterIP
  selector:
    app: ${DEMO_NAME}-db
  ports:
  - port: 3306
    targetPort: 3306
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ${DEMO_NAME}-web
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ${DEMO_NAME}-web
  template:
    metadata:
      labels:
        app: ${DEMO_NAME}-web
    spec:
      containers:
      - name: phpmyadmin
        image: ${DEMO_WEB_IMAGE}
        imagePullPolicy: Always
        ports:
        - containerPort: 80
        env:
        - name: PMA_HOST
          value: ${DEMO_NAME}-db
        - name: PMA_PORT
          value: "3306"
        - name: UPLOAD_LIMIT
          value: "64M"
---
apiVersion: v1
kind: Service
metadata:
  name: ${DEMO_NAME}-web-lb
spec:
  type: LoadBalancer
  selector:
    app: ${DEMO_NAME}-web
  ports:
  - port: 80
    targetPort: 80
YAML
  fi
}
wait_for_rollouts() {
  log "Waiting for database rollout"
  kubectl --context "$ctx" -n "$DEMO_NAMESPACE" rollout status deploy/"${DEMO_NAME}-db" --timeout=300s
  log "Waiting for web rollout"
  kubectl --context "$ctx" -n "$DEMO_NAMESPACE" rollout status deploy/"${DEMO_NAME}-web" --timeout=300s
}
get_demo_lb_ip() {
  kubectl --context "$ctx" -n "$DEMO_NAMESPACE" get svc "${DEMO_NAME}-web-lb" \
    -o jsonpath='{.status.loadBalancer.ingress[0].ip}' 2>/dev/null || true
}
wait_for_demo_lb_ip() {
  log "Waiting for LoadBalancer IP for ${DEMO_NAME}-web-lb"
  local lb_ip=""
  local max_tries=36
  local i
  for i in $(seq 1 "$max_tries"); do
    lb_ip="$(get_demo_lb_ip)"
    if [[ -n "${lb_ip}" ]]; then
      echo "${lb_ip}"
      return 0
    fi
    sleep 5
  done
  return 1
}
show_status() {
  log "Current objects"
  kubectl --context "$ctx" -n "$DEMO_NAMESPACE" get deploy,pod,svc,pvc | egrep "NAME|${DEMO_NAME}" || true
}
print_next_steps() {
  local lb_ip
  lb_ip="$(wait_for_demo_lb_ip || true)"
  echo
  echo "========================================"
  echo "Demo application deployment completed"
  echo "========================================"
  if [[ -n "${lb_ip}" ]]; then
    echo "Assigned LoadBalancer IP : ${lb_ip}"
    echo "Requested FQDN           : ${DEMO_FQDN}"
    echo
    echo "Create this DNS record:"
    echo "  ${DEMO_FQDN} -> ${lb_ip}"
    echo
    echo "Then open:"
    echo "  http://${lb_ip}"
    echo "  http://${DEMO_FQDN}"
    echo
    echo "phpMyAdmin login details:"
    echo "  Server   : ${DEMO_NAME}-db"
    echo "  Username : ${DEMO_DB_USER}"
    echo "  Password : ${DEMO_DB_PASSWORD}"
    echo
    echo "Demo database:"
    echo "  Database : ${DEMO_DB_NAME}"
    echo "  Table    : demo_messages"
  else
    warn "No LoadBalancer IP assigned yet."
    echo
    echo "Check again with:"
    echo "  kubectl --context \"$ctx\" -n \"$DEMO_NAMESPACE\" get svc ${DEMO_NAME}-web-lb -o wide"
    echo
    echo "Once the IP appears, create this DNS record:"
    echo "  ${DEMO_FQDN} -> <assigned-lb-ip>"
  fi
}
main() {
  ensure_namespace_exists
  show_input_values
  ensure_demo_images
  deploy_demoapp
  wait_for_rollouts
  show_status
  print_next_steps
  log "08 done."
}
main "$@"

you may need to adjust to your specified storage class:

It`s defined in the script like this:

DEMO_STORAGE_CLASS=”${DEMO_STORAGE_CLASS:-management-storage-policy-thin}”

I used “management-storage-policy-thin”

If something fails, you should do a cleanup and run it again, use this:

kubectl --context vcflab02 -n demoapp delete deployment demoapp-db demoapp-web --ignore-not-found
kubectl --context vcflab02 -n demoapp delete service demoapp-db demoapp-web-lb --ignore-not-found
kubectl --context vcflab02 -n demoapp delete secret demoapp-db-secret --ignore-not-found
kubectl --context vcflab02 -n demoapp delete configmap demoapp-db-init --ignore-not-found
kubectl --context vcflab02 -n demoapp delete pvc demoapp-db-pvc --ignore-not-found

If you want to override fqdn or storage class, then run:

DEMO_NAMESPACE="demoapp" \
DEMO_FQDN="demoapp.vcf.local" \
DEMO_STORAGE_CLASS="management-storage-policy-thin" \
./demoapp.sh

otherwise, just run: ./demoapp.sh

if all goes well, you should get something like this👇🏻 wich will give you the IP you need for the FQDN and the login details:

========================================

Demo application deployment completed

Assigned LoadBalancer IP : [INFO] Waiting for LoadBalancer IP for demoapp-web-lb
10.31.x.x
Requested FQDN : demoapp.vcf.local

Create this DNS record:
demoapp.vcf.local -> [INFO] Waiting for LoadBalancer IP for demoapp-web-lb
10.31.x.x

Then open:
http://%5BINFO%5D Waiting for LoadBalancer IP for demoapp-web-lb
10.31.x.x
http://demoapp.vcf.local

phpMyAdmin login details:
Server : demoapp-db
Username : demoapp
Password : ChangeMe123!

Demo database:
Database : demoapp
Table : demo_messages
[INFO] 08 done.
root@sv01-mgmt02 [ ~/bootstrap ]#

I add demoapp.vcf.local to my dns with the IP above.

I use the login info and verify:

and the test message ” Hello from VKS and MariaDB”:

This is just an example, i hope you found it useful.

Many services that traditionally ran on dedicated Linux or Windows virtual machines can now be delivered as containerized applications on platforms such as Kubernetes. Instead of deploying one VM per service, organizations often run one containerized service per function, which makes deployment and lifecycle management more flexible.

The most common examples include web and ingress services such as NGINX, Apache, Envoy, and Traefik; container registries such as Harbor; CI/CD platforms such as GitLab and Argo CD; identity and access services such as Keycloak; secrets management with HashiCorp Vault; databases such as PostgreSQL, MariaDB/MySQL, MongoDB, and Redis; and observability stacks such as Prometheus and Grafana.

In practice, the best candidates for moving from VMs to containers are web applications, APIs, internal portals, monitoring tools, CI/CD platforms, identity services, message brokers, and many modern databases. Traditional Windows infrastructure, legacy applications, GUI-dependent software, and some highly specialized or licensed systems are more likely to remain on dedicated virtual machines.

A simple way to describe it is:

Many Linux-based infrastructure and application services can now be replaced by containerized platforms and applications, while Windows-based legacy and infrastructure workloads are often modernized more gradually.

Next post will be about configuring a two-tier application published from VCF Automation.

Comments

Leave a comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Back to top of page
