Automating an AD/DC/DNS server in a VCF Pod

–

12–19 minutes

read –

in

Objective: Creating a complete nested pod from scratch containing ad/dc/dns, tftp, ntp and a complete VCF installation.

  • starting with automating the setup process in windows server in my new LAB.
  • already configured an ipblock in my external fw based on /16, and created vlan and interface in the virtual fw for my mgmt network.
  • already have a std windows 2022 server configured with static IP and a lokal admin.

Script functionality

The script automates the initial configuration of a Windows server that will function as an Active Directory domain controller and DNS server. It performs the following configuration steps:

  • Configures the server hostname
  • Verifies and disables Windows Defender Firewall
  • Disables Internet Explorer Enhanced Security Configuration
  • Enables Remote Desktop
  • Sets the system timezone
  • Configures time synchronization against a specified NTP source
  • Installs the AD DS and DNS Server roles
  • Creates a new Active Directory domain
  • Creates an administrative account and adds it to the Domain Admins group
  • Creates additional standard user accounts
  • Creates a reverse DNS lookup zone for the target subnet
  • Creates both forward (A) and reverse (PTR) DNS records for the domain controller
  • Configures DNS forwarders
  • Creates a baseline OU structure for administration and organization:
    • Servers
    • Users
    • Service Accounts

Edit the configuration section to fit your needs.

Build-ADDS-Lab-DC01-v4.ps1
#requires -RunAsAdministrator
param(
    [ValidateSet("Stage0","Stage1","Stage2")]
    [string]$Stage = "Stage0"
)
$ErrorActionPreference = "Stop"
$ComputerName        = "addc01"
$DomainName          = "bervid.local"
$NetBIOSName         = "BERVID"
$ServerIPv4          = "xx.3.xx.10"
$PrefixLength        = 24
$DefaultGateway      = "xx.3.xx.1"
$PreferredDNS        = "127.0.0.1"
$NtpServer           = "ntp.uio.no"
$ReverseNetworkId    = "xx.3.xx.0/24"
$ReverseZoneName     = "xx.3.xx.in-addr.arpa"
$DefaultUserPwd      = "VMware123!"
$SafeModePassword    = "VMware123!"
$UsersToCreate       = @("bervid","user1","user2","user3")
$DnsForwarders       = @("1.1.1.1","8.8.8.8")
$ScriptPath          = $MyInvocation.MyCommand.Path
$TranscriptPath      = "C:\Build-ADDS-Lab-DC01-v4.log"
$TaskStage1          = "Build-ADDS-Lab-DC01-v4-Stage1"
$TaskStage2          = "Build-ADDS-Lab-DC01-v4-Stage2"
Start-Transcript -Path $TranscriptPath -Append | Out-Null
if ($PSVersionTable.PSEdition -ne 'Desktop') {
    throw "Run this in Windows PowerShell 5.1 (powershell.exe), not pwsh."
}
function Write-Step { param([string]$Message) Write-Host ""; Write-Host "=== $Message ===" -ForegroundColor Cyan }
function Get-BaseDN { ($DomainName.Split(".") | ForEach-Object { "DC=$_" }) -join "," }
function Register-StartupTask {
    param([string]$TaskName,[string]$NextStage)
    $action  = New-ScheduledTaskAction -Execute "PowerShell.exe" -Argument "-ExecutionPolicy Bypass -File `"$ScriptPath`" -Stage $NextStage"
    $trigger = New-ScheduledTaskTrigger -AtStartup
    $principal = New-ScheduledTaskPrincipal -UserId "SYSTEM" -LogonType ServiceAccount -RunLevel Highest
    $task = New-ScheduledTask -Action $action -Trigger $trigger -Principal $principal
    Register-ScheduledTask -TaskName $TaskName -InputObject $task -Force | Out-Null
}
function Remove-StartupTask {
    param([string]$TaskName)
    Unregister-ScheduledTask -TaskName $TaskName -Confirm:$false -ErrorAction SilentlyContinue
}
function Ensure-StaticIP {
    Write-Step "Checking IPv4 configuration"
    $adapter = Get-NetAdapter | Where-Object Status -eq "Up" | Sort-Object ifIndex | Select-Object -First 1
    if (-not $adapter) { throw "No active network adapter found." }
    $existing = Get-NetIPAddress -InterfaceIndex $adapter.ifIndex -AddressFamily IPv4 -ErrorAction SilentlyContinue |
        Where-Object { $_.IPAddress -ne "127.0.0.1" -and $_.IPAddress -notlike "169.254*" }
    if (-not $existing -or ($existing | Select-Object -First 1).IPAddress -ne $ServerIPv4) {
        $existing | ForEach-Object {
            try { Remove-NetIPAddress -InterfaceIndex $adapter.ifIndex -IPAddress $_.IPAddress -Confirm:$false -ErrorAction Stop } catch {}
        }
        Get-NetRoute -InterfaceIndex $adapter.ifIndex -DestinationPrefix "0.0.0.0/0" -ErrorAction SilentlyContinue |
            Remove-NetRoute -Confirm:$false -ErrorAction SilentlyContinue
        New-NetIPAddress -InterfaceIndex $adapter.ifIndex -IPAddress $ServerIPv4 -PrefixLength $PrefixLength -DefaultGateway $DefaultGateway | Out-Null
    }
    Set-DnsClientServerAddress -InterfaceIndex $adapter.ifIndex -ServerAddresses $PreferredDNS
}
function Disable-Firewall {
    Write-Step "Checking Windows Defender Firewall"
    if (Get-NetFirewallProfile | Where-Object Enabled -eq "True") {
        Set-NetFirewallProfile -Profile Domain,Private,Public -Enabled False
    }
    Get-NetFirewallProfile | Select-Object Name, Enabled | Format-Table -AutoSize
}
function Disable-IESecurity {
    Write-Step "Disabling IE Enhanced Security Configuration"
    $adminKey = "HKLM:\SOFTWARE\Microsoft\Active Setup\Installed Components\{A509B1A7-37EF-4B3F-8CFC-4F3A74704073}"
    $userKey  = "HKLM:\SOFTWARE\Microsoft\Active Setup\Installed Components\{A509B1A8-37EF-4B3F-8CFC-4F3A74704073}"
    foreach ($key in @($adminKey, $userKey)) {
        if (Test-Path $key) { Set-ItemProperty -Path $key -Name "IsInstalled" -Value 0 -Type DWord }
    }
}
function Enable-RDP {
    Write-Step "Enabling Remote Desktop"
    Set-ItemProperty -Path "HKLM:\System\CurrentControlSet\Control\Terminal Server" -Name "fDenyTSConnections" -Value 0
    Enable-NetFirewallRule -DisplayGroup "Remote Desktop" -ErrorAction SilentlyContinue | Out-Null
}
function Set-TimeConfig {
    Write-Step "Configuring time zone and NTP"
    tzutil /s "W. Europe Standard Time"
    w32tm /config /manualpeerlist:$NtpServer /syncfromflags:manual /reliable:yes /update | Out-Null
    Restart-Service w32time -Force
    Start-Sleep -Seconds 3
    w32tm /resync /force | Out-Null
}
function Ensure-HostNameOrReboot {
    Write-Step "Setting hostname"
    if ($env:COMPUTERNAME -ne $ComputerName) {
        Rename-Computer -NewName $ComputerName -Force
        Remove-StartupTask -TaskName $TaskStage1
        Remove-StartupTask -TaskName $TaskStage2
        Register-StartupTask -TaskName $TaskStage1 -NextStage "Stage1"
        Restart-Computer -Force
        exit
    }
}
function Install-ADDSAndPromote {
    Write-Step "Installing AD DS and DNS"
    Import-Module ServerManager -ErrorAction Stop
    Install-WindowsFeature AD-Domain-Services, DNS -IncludeManagementTools
    Remove-StartupTask -TaskName $TaskStage2
    Register-StartupTask -TaskName $TaskStage2 -NextStage "Stage2"
    Write-Step "Promoting server to new forest/domain"
    $smPwd = ConvertTo-SecureString $SafeModePassword -AsPlainText -Force
    Install-ADDSForest `
        -DomainName $DomainName `
        -DomainNetbiosName $NetBIOSName `
        -InstallDNS `
        -SafeModeAdministratorPassword $smPwd `
        -Force `
        -NoRebootOnCompletion:$false
}
function Wait-ForAD {
    Write-Step "Waiting for Active Directory services"
    $max = 30; $count = 0
    do {
        Start-Sleep -Seconds 10
        $count++
        $adReady = Get-Service NTDS -ErrorAction SilentlyContinue
    } until (($adReady -and $adReady.Status -eq "Running") -or $count -ge $max)
    if (-not $adReady -or $adReady.Status -ne "Running") {
        throw "Active Directory services did not become ready in time."
    }
}
function Ensure-OU {
    param([string]$Name,[string]$Path)
    $ouDn = "OU=$Name,$Path"
    if (-not (Get-ADOrganizationalUnit -LDAPFilter "(distinguishedName=$ouDn)" -ErrorAction SilentlyContinue)) {
        New-ADOrganizationalUnit -Name $Name -Path $Path -ProtectedFromAccidentalDeletion $false
    }
}
function Create-OUStructure {
    Write-Step "Creating OU structure"
    Import-Module ActiveDirectory
    $baseDN = Get-BaseDN
    Ensure-OU -Name "Servers" -Path $baseDN
    Ensure-OU -Name "Users" -Path $baseDN
    Ensure-OU -Name "Service Accounts" -Path $baseDN
}
function Create-DomainUsers {
    Write-Step "Creating additional domain users"
    Import-Module ActiveDirectory
    $securePwd = ConvertTo-SecureString $DefaultUserPwd -AsPlainText -Force
    $usersOU = "OU=Users,$((Get-BaseDN))"
    foreach ($u in $UsersToCreate) {
        $existing = Get-ADUser -Filter "SamAccountName -eq '$u'" -ErrorAction SilentlyContinue
        if (-not $existing) {
            New-ADUser `
                -Name $u `
                -SamAccountName $u `
                -UserPrincipalName "$u@$DomainName" `
                -Path $usersOU `
                -AccountPassword $securePwd `
                -Enabled $true `
                -PasswordNeverExpires $true
        }
    }
    Add-ADGroupMember -Identity "Domain Admins" -Members "bervid" -ErrorAction SilentlyContinue
}
function Ensure-ReverseZone {
    Write-Step "Ensuring reverse lookup zone"
    Import-Module DnsServer
    $zone = Get-DnsServerZone -Name $ReverseZoneName -ErrorAction SilentlyContinue
    if (-not $zone) {
        Add-DnsServerPrimaryZone -NetworkId $ReverseNetworkId -ReplicationScope "Domain"
    }
}
function Ensure-DNSRecords {
    Write-Step "Ensuring A and PTR records for addc01"
    Import-Module DnsServer
    $aRecord = Get-DnsServerResourceRecord -ZoneName $DomainName -Name $ComputerName -RRType "A" -ErrorAction SilentlyContinue
    if (-not $aRecord) {
        Add-DnsServerResourceRecordA -ZoneName $DomainName -Name $ComputerName -IPv4Address $ServerIPv4
    }
    $lastOctet = ($ServerIPv4 -split '\.')[-1]
    $existingPTR = Get-DnsServerResourceRecord -ZoneName $ReverseZoneName -Name $lastOctet -RRType PTR -ErrorAction SilentlyContinue
    if (-not $existingPTR) {
        Add-DnsServerResourceRecordPtr -ZoneName $ReverseZoneName -Name $lastOctet -PtrDomainName "$ComputerName.$DomainName"
    }
}
function Set-DNSForwarders {
    Write-Step "Configuring DNS forwarders"
    Import-Module DnsServer
    $current = (Get-DnsServerForwarder -ErrorAction SilentlyContinue).IPAddress.IPAddressToString
    if ((@($current) -join ",") -ne (@($DnsForwarders) -join ",")) {
        Set-DnsServerForwarder -IPAddress $DnsForwarders -UseRecurse $true
    }
}
function Add-CheckResult {
    param([string]$Name,[bool]$Passed,[string]$Detail)
    [PSCustomObject]@{ Check=$Name; Status=$(if($Passed){"PASS"}else{"FAIL"}); Detail=$Detail }
}
function Final-Checks {
    Write-Step "Final validation summary"
    Import-Module ActiveDirectory
    Import-Module DnsServer
    $results = @()
    $baseDN = Get-BaseDN
    $results += Add-CheckResult "Hostname" ($env:COMPUTERNAME -eq $ComputerName) $env:COMPUTERNAME
    try {
        $domain = Get-ADDomain
        $results += Add-CheckResult "Domain created" ($domain.DNSRoot -eq $DomainName) $domain.DNSRoot
    } catch {
        $results += Add-CheckResult "Domain created" $false $_.Exception.Message
    }
    foreach ($ou in @("Servers","Users","Service Accounts")) {
        $ouDn = "OU=$ou,$baseDN"
        $exists = Get-ADOrganizationalUnit -LDAPFilter "(distinguishedName=$ouDn)" -ErrorAction SilentlyContinue
        $results += Add-CheckResult "OU $ou" ([bool]$exists) $ouDn
    }
    foreach ($u in $UsersToCreate) {
        $user = Get-ADUser -Filter "SamAccountName -eq '$u'" -ErrorAction SilentlyContinue
        $results += Add-CheckResult "User $u" ([bool]$user) $(if ($user) { $user.UserPrincipalName } else { "Missing" })
    }
    $bervidDA = Get-ADGroupMember "Domain Admins" -ErrorAction SilentlyContinue | Where-Object { $_.SamAccountName -eq "bervid" }
    $results += Add-CheckResult "bervid in Domain Admins" ([bool]$bervidDA) $(if ($bervidDA) { "Member" } else { "Missing" })
    $rev = Get-DnsServerZone -Name $ReverseZoneName -ErrorAction SilentlyContinue
    $results += Add-CheckResult "Reverse zone" ([bool]$rev) $ReverseZoneName
    $aRecord = Get-DnsServerResourceRecord -ZoneName $DomainName -Name $ComputerName -RRType "A" -ErrorAction SilentlyContinue
    $results += Add-CheckResult "A record addc01" ([bool]$aRecord) "$ComputerName.$DomainName"
    $lastOctet = ($ServerIPv4 -split '\.')[-1]
    $ptr = Get-DnsServerResourceRecord -ZoneName $ReverseZoneName -Name $lastOctet -RRType PTR -ErrorAction SilentlyContinue
    $results += Add-CheckResult "PTR record addc01" ([bool]$ptr) $ServerIPv4
    $currentForwarders = (Get-DnsServerForwarder -ErrorAction SilentlyContinue).IPAddress.IPAddressToString
    $forwardersOk = ((@($currentForwarders) -join ",") -eq (@($DnsForwarders) -join ","))
    $results += Add-CheckResult "DNS forwarders" $forwardersOk (@($currentForwarders) -join ", ")
    $results | Format-Table -AutoSize
    $failCount = @($results | Where-Object Status -eq "FAIL").Count
    if ($failCount -eq 0) {
        Write-Host "`nDC01 build summary: SUCCESS" -ForegroundColor Green
    } else {
        Write-Host "`nDC01 build summary: COMPLETED WITH ISSUES ($failCount failed checks)" -ForegroundColor Yellow
    }
}
switch ($Stage) {
    "Stage0" {
        Write-Step "Stage 0 starting"
        Ensure-StaticIP
        Disable-Firewall
        Disable-IESecurity
        Enable-RDP
        Set-TimeConfig
        Ensure-HostNameOrReboot
        Install-ADDSAndPromote
    }
    "Stage1" {
        Write-Step "Stage 1 starting"
        Remove-StartupTask -TaskName $TaskStage1
        Ensure-StaticIP
        Disable-Firewall
        Disable-IESecurity
        Enable-RDP
        Set-TimeConfig
        Install-ADDSAndPromote
    }
    "Stage2" {
        Write-Step "Stage 2 starting"
        Remove-StartupTask -TaskName $TaskStage2
        Wait-ForAD
        Create-OUStructure
        Create-DomainUsers
        Ensure-ReverseZone
        Ensure-DNSRecords
        Set-DNSForwarders
        Final-Checks
    }
}
Stop-Transcript | Out-Null

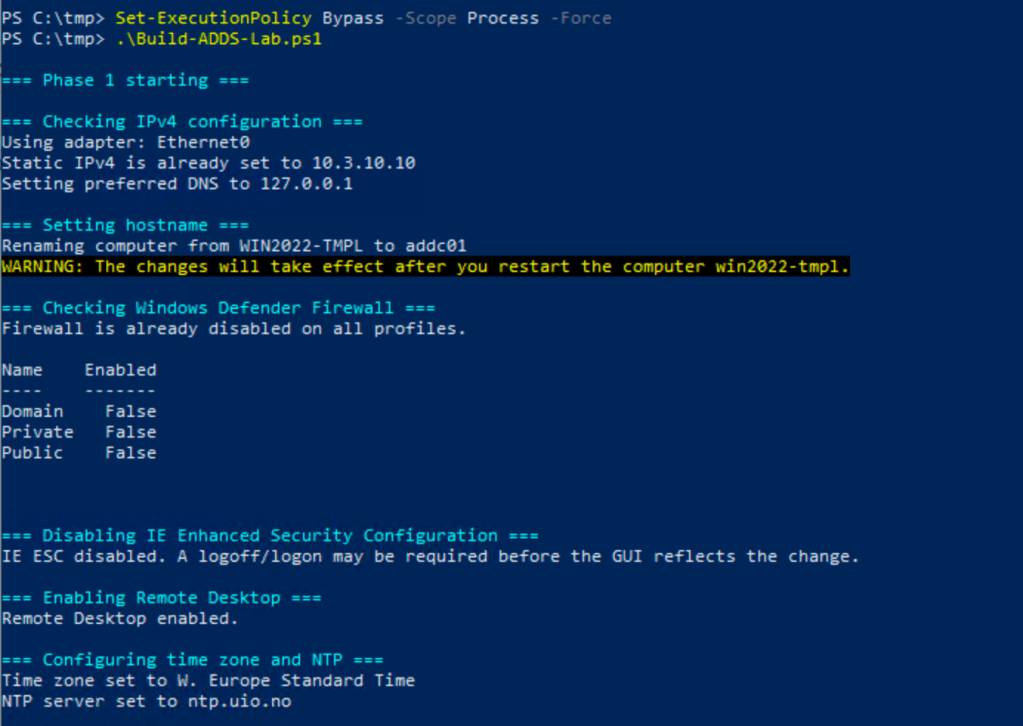

How to run:

Set-ExecutionPolicy Bypass -Scope Process -Force
.\Build-ADDS-Lab-DC01-v4.ps1

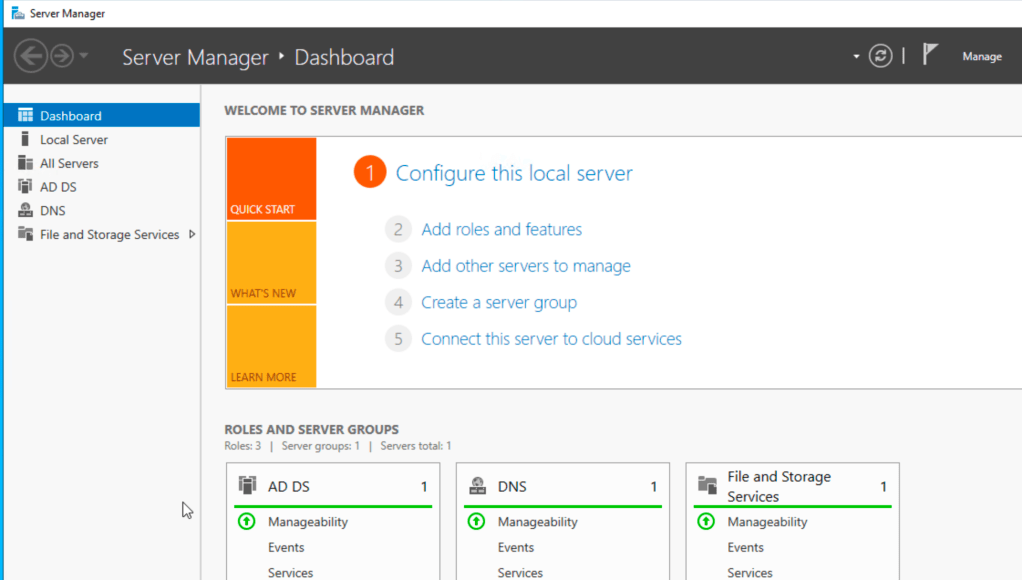

Server will promote to DC and restart. After reboot phase 2 will continue via scheduled task.

To run it i thought the easiest would be to copy directly via RDP, but since my pod was behind a virtual pfsense i had to create a rule to allow MS RDP 3389 both in physical and virtual pfsense. Then i had powershell in RDP and copied what i needed.

RDP traffic flow example
[Admin PC]
192.168.50.25
        |
        | TCP 3389
        v
[Edge Firewall]
Route: 172.20.0.0/16 -> 192.168.50.13
        |
        | forwarded toward pod firewall
        v
[Pod Firewall - WAN]
192.168.50.13
   Rule needed here:
   Allow TCP 3389
   Source: 192.168.50.0/24
   Destination: 172.20.10.0/24
        |
        | routed into pod management VLAN
        v
[Pod Management Network]
172.20.10.0/24
VLAN 310
        |
        v
[Windows Server]
dc01.example.local
172.20.10.10
RDP listening on TCP 3389

So lets run it:

It renames, needs a reboot before it can continue. In my first version it failed with an error because of the renaming needs a boot, so in that case, restart and run the script, it will just continue.

After a reboot you should have these services up and running.

You could run a pre-check script to make sure everything is done before you start with addc02:

run it:

Set-ExecutionPolicy Bypass -Scope Process -Force
.\PreCheck-ADDS-Lab.ps1
PreCheck-ADDS-Lab.ps1
#requires -RunAsAdministrator
$ErrorActionPreference = "Stop"
$DomainName       = "bervid.local"
$ComputerName     = "addc01"
$ServerIPv4       = "xx.3.xx.10"
$ReverseZoneName  = "xx.3.xx.in-addr.arpa"
$ExpectedUsers    = @("bervid","user1","user2","user3")
function Write-Step {
    param([string]$Message)
    Write-Host ""
    Write-Host "=== $Message ===" -ForegroundColor Cyan
}
function Get-BaseDN {
    $parts = $DomainName.Split(".")
    ($parts | ForEach-Object { "DC=$_" }) -join ","
}
Import-Module ActiveDirectory
Import-Module DnsServer
$baseDN = Get-BaseDN
Write-Step "Checking domain"
Get-ADDomain | Select-Object DNSRoot, NetBIOSName | Format-Table -AutoSize
Write-Step "Checking forward DNS"
Resolve-DnsName "$ComputerName.$DomainName" | Format-Table -AutoSize
Write-Step "Checking reverse DNS zone"
$rev = Get-DnsServerZone -Name $ReverseZoneName -ErrorAction SilentlyContinue
if ($rev) {
    Write-Host "Reverse zone exists: $ReverseZoneName"
} else {
    Write-Warning "Reverse zone is missing: $ReverseZoneName"
}
Write-Step "Checking PTR for addc01"
try {
    Resolve-DnsName $ServerIPv4 | Format-Table -AutoSize
}
catch {
    Write-Warning "PTR lookup failed for $ServerIPv4"
}
Write-Step "Checking OUs"
$ous = @("Servers","Users","Service Accounts")
foreach ($ou in $ous) {
    $ouDn = "OU=$ou,$baseDN"
    $exists = Get-ADOrganizationalUnit -LDAPFilter "(distinguishedName=$ouDn)" -ErrorAction SilentlyContinue
    if ($exists) {
        Write-Host "OU exists: $ouDn"
    } else {
        Write-Warning "OU missing: $ouDn"
    }
}
Write-Step "Checking users"
foreach ($u in $ExpectedUsers) {
    $user = Get-ADUser -Filter "SamAccountName -eq '$u'" -ErrorAction SilentlyContinue
    if ($user) {
        Write-Host "User exists: $u"
    } else {
        Write-Warning "User missing: $u"
    }
}
Write-Step "Checking Domain Admins membership for bervid"
$da = Get-ADGroupMember "Domain Admins" | Where-Object { $_.SamAccountName -eq "bervid" }
if ($da) {
    Write-Host "bervid is a member of Domain Admins"
} else {
    Write-Warning "bervid is NOT a member of Domain Admins"
}

This should verify if everything is done as expected.

If you still want to add users manually:

addusers.ps1
Import-Module ActiveDirectory
$DomainName = "bervid.local"
$BaseDN = "DC=bervid,DC=local"
$UsersOU = "OU=Users,$BaseDN"
$Password = ConvertTo-SecureString "VMware123!" -AsPlainText -Force
$Users = @("bervid","user1","user2","user3")
foreach ($u in $Users) {
    if (-not (Get-ADUser -Filter "SamAccountName -eq '$u'" -ErrorAction SilentlyContinue)) {
        New-ADUser `
            -Name $u `
            -SamAccountName $u `
            -UserPrincipalName "$u@$DomainName" `
            -Path $UsersOU `
            -AccountPassword $Password `
            -Enabled $true `
            -PasswordNeverExpires $true
        Write-Host "Created user $u"
    }
    else {
        Write-Host "User $u already exists"
    }
}
Add-ADGroupMember -Identity "Domain Admins" -Members "bervid" -ErrorAction SilentlyContinue
Write-Host "Added bervid to Domain Admins"

Now we can focus on DC02. When we deploy this be sure to run the newsid / sysprep integrated in vCenter or manually on the vm to be sure:
C:\Windows\System32\Sysprep\Sysprep.exe , make sure to check oobe & generalize. IMPORTANT.

Then its the second script:

  • configures the server with its static IP, gateway, DNS, timezone, NTP, RDP, and basic lab settings
  • renames the server to addc02 if needed and reboots
  • verifies DNS and connectivity to the existing DC (addc01)
  • joins the existing bervid.local domain
  • installs AD DS and DNS
  • promotes the server to an additional domain controller
  • reboots again
  • updates DNS client settings so it uses itself and the first DC
  • checks reverse DNS, A/PTR records, forwarders, and basic AD replication health

run it:

Set-ExecutionPolicy Bypass -Scope Process -Force
.\Build-ADDS-Lab-DC02-v3.ps1
Build-ADDS-Lab-DC02-v3.ps1
#requires -RunAsAdministrator
param(
    [ValidateSet("Stage0","Stage1","Stage2","Stage3")]
    [string]$Stage = "Stage0"
)
$ErrorActionPreference = "Stop"
$ComputerName            = "addc02"
$DomainName              = "bervid.local"
$NetBIOSName             = "BERVID"
$ServerIPv4              = "xx.3.xx.11"
$PrefixLength            = 24
$DefaultGateway          = "xx.3.xx.1"
$InitialPreferredDNS     = @("xx.3.xx.10")
$PostPromotionDNS        = @("xx.3.xx.11","xx.3.xx.10")
$NtpServer               = "ntp.uio.no"
$ReverseNetworkId        = "xx.3.xx.0/24"
$ReverseZoneName         = "xx.3.xx.in-addr.arpa"
$ExistingDC              = "addc01.bervid.local"
$DomainAdminUser         = "Administrator"
$DomainAdminPassword     = "VMware123!"
$SafeModePassword        = "VMware123!"
$DnsForwarders           = @("1.1.1.1","8.8.8.8")
$SiteName                = "Default-First-Site-Name"
$ScriptPath              = $MyInvocation.MyCommand.Path
$TranscriptPath          = "C:\Build-ADDS-Lab-DC02-v3.log"
$TaskStage1              = "Build-ADDS-Lab-DC02-v3-Stage1"
$TaskStage2              = "Build-ADDS-Lab-DC02-v3-Stage2"
$TaskStage3              = "Build-ADDS-Lab-DC02-v3-Stage3"
Start-Transcript -Path $TranscriptPath -Append | Out-Null
if ($PSVersionTable.PSEdition -ne 'Desktop') {
    throw "Run this in Windows PowerShell 5.1 (powershell.exe), not pwsh."
}
function Write-Step { param([string]$Message) Write-Host ""; Write-Host "=== $Message ===" -ForegroundColor Cyan }
function Register-StartupTask {
    param([string]$TaskName,[string]$NextStage)
    $action  = New-ScheduledTaskAction -Execute "PowerShell.exe" -Argument "-ExecutionPolicy Bypass -File `"$ScriptPath`" -Stage $NextStage"
    $trigger = New-ScheduledTaskTrigger -AtStartup
    $principal = New-ScheduledTaskPrincipal -UserId "SYSTEM" -LogonType ServiceAccount -RunLevel Highest
    $task = New-ScheduledTask -Action $action -Trigger $trigger -Principal $principal
    Register-ScheduledTask -TaskName $TaskName -InputObject $task -Force | Out-Null
}
function Remove-StartupTask {
    param([string]$TaskName)
    Unregister-ScheduledTask -TaskName $TaskName -Confirm:$false -ErrorAction SilentlyContinue
}
function Ensure-StaticIP {
    param([string[]]$DnsServers)
    Write-Step "Checking IPv4 configuration"
    $adapter = Get-NetAdapter | Where-Object Status -eq "Up" | Sort-Object ifIndex | Select-Object -First 1
    if (-not $adapter) { throw "No active network adapter found." }
    $existing = Get-NetIPAddress -InterfaceIndex $adapter.ifIndex -AddressFamily IPv4 -ErrorAction SilentlyContinue |
        Where-Object { $_.IPAddress -ne "127.0.0.1" -and $_.IPAddress -notlike "169.254*" }
    if (-not $existing -or ($existing | Select-Object -First 1).IPAddress -ne $ServerIPv4) {
        $existing | ForEach-Object {
            try { Remove-NetIPAddress -InterfaceIndex $adapter.ifIndex -IPAddress $_.IPAddress -Confirm:$false -ErrorAction Stop } catch {}
        }
        Get-NetRoute -InterfaceIndex $adapter.ifIndex -DestinationPrefix "0.0.0.0/0" -ErrorAction SilentlyContinue |
            Remove-NetRoute -Confirm:$false -ErrorAction SilentlyContinue
        New-NetIPAddress -InterfaceIndex $adapter.ifIndex -IPAddress $ServerIPv4 -PrefixLength $PrefixLength -DefaultGateway $DefaultGateway | Out-Null
    }
    Set-DnsClientServerAddress -InterfaceIndex $adapter.ifIndex -ServerAddresses $DnsServers
}
function Disable-Firewall {
    Write-Step "Checking Windows Defender Firewall"
    if (Get-NetFirewallProfile | Where-Object Enabled -eq "True") {
        Set-NetFirewallProfile -Profile Domain,Private,Public -Enabled False
    }
}
function Disable-IESecurity {
    Write-Step "Disabling IE Enhanced Security Configuration"
    $adminKey = "HKLM:\SOFTWARE\Microsoft\Active Setup\Installed Components\{A509B1A7-37EF-4B3F-8CFC-4F3A74704073}"
    $userKey  = "HKLM:\SOFTWARE\Microsoft\Active Setup\Installed Components\{A509B1A8-37EF-4B3F-8CFC-4F3A74704073}"
    foreach ($key in @($adminKey, $userKey)) {
        if (Test-Path $key) { Set-ItemProperty -Path $key -Name "IsInstalled" -Value 0 -Type DWord }
    }
}
function Enable-RDP {
    Write-Step "Enabling Remote Desktop"
    Set-ItemProperty -Path "HKLM:\System\CurrentControlSet\Control\Terminal Server" -Name "fDenyTSConnections" -Value 0
    Enable-NetFirewallRule -DisplayGroup "Remote Desktop" -ErrorAction SilentlyContinue | Out-Null
}
function Set-TimeConfig {
    Write-Step "Configuring time zone and NTP"
    tzutil /s "W. Europe Standard Time"
    w32tm /config /manualpeerlist:$NtpServer /syncfromflags:manual /update | Out-Null
    Restart-Service w32time -Force
    Start-Sleep -Seconds 3
    w32tm /resync /force | Out-Null
}
function Ensure-HostNameOrReboot {
    Write-Step "Setting hostname"
    if ($env:COMPUTERNAME -ne $ComputerName) {
        Rename-Computer -NewName $ComputerName -Force
        Remove-StartupTask -TaskName $TaskStage1
        Remove-StartupTask -TaskName $TaskStage2
        Remove-StartupTask -TaskName $TaskStage3
        Register-StartupTask -TaskName $TaskStage1 -NextStage "Stage1"
        Restart-Computer -Force
        exit
    }
}
function Wait-ForDNSAndDC {
    Write-Step "Waiting for DNS and existing domain controller"
    $max = 30; $count = 0
    do {
        Start-Sleep -Seconds 10
        $count++
        $dnsOk = $false
        $dcOk  = $false
        try { Resolve-DnsName $ExistingDC -ErrorAction Stop | Out-Null; $dnsOk = $true } catch {}
        try { nltest /dsgetdc:$DomainName | Out-Null; $dcOk = $true } catch {}
    } until (($dnsOk -and $dcOk) -or $count -ge $max)
    if (-not ($dnsOk -and $dcOk)) {
        throw "Could not verify DNS and DC reachability for $DomainName"
    }
}
function New-DomainCredential {
    $user = "$DomainAdminUser@$DomainName"
    $securePwd = ConvertTo-SecureString $DomainAdminPassword -AsPlainText -Force
    New-Object System.Management.Automation.PSCredential($user, $securePwd)
}
function Test-DomainCredential {
    param([System.Management.Automation.PSCredential]$Credential)
    Write-Step "Validating domain credentials"
    try {
        if (Get-PSDrive -Name "ADTEST" -ErrorAction SilentlyContinue) {
            Remove-PSDrive -Name "ADTEST" -ErrorAction SilentlyContinue
        }
        $null = New-PSDrive -Name "ADTEST" -PSProvider FileSystem -Root "\\$ExistingDC\SYSVOL" -Credential $Credential -ErrorAction Stop
        Remove-PSDrive -Name "ADTEST" -ErrorAction SilentlyContinue
    } catch {
        throw "Domain credential validation failed against \\$ExistingDC\SYSVOL"
    }
}
function Join-DomainAndReboot {
    Write-Step "Joining existing domain"
    $currentComputerSystem = Get-CimInstance Win32_ComputerSystem
    if ($currentComputerSystem.PartOfDomain -and $currentComputerSystem.Domain -ieq $DomainName) {
        Write-Host "Server is already joined to $DomainName"
        return
    }
    $cred = New-DomainCredential
    Test-DomainCredential -Credential $cred
    Remove-StartupTask -TaskName $TaskStage2
    Register-StartupTask -TaskName $TaskStage2 -NextStage "Stage2"
    Add-Computer -DomainName $DomainName -Credential $cred -Force
    Restart-Computer -Force
    exit
}
function Install-ADDSAndPromote {
    Write-Step "Installing AD DS and DNS"
    Import-Module ServerManager -ErrorAction Stop
    Install-WindowsFeature AD-Domain-Services, DNS -IncludeManagementTools
    Remove-StartupTask -TaskName $TaskStage3
    Register-StartupTask -TaskName $TaskStage3 -NextStage "Stage3"
    Write-Step "Promoting server to additional domain controller"
    $cred = New-DomainCredential
    $smPwd = ConvertTo-SecureString $SafeModePassword -AsPlainText -Force
    Install-ADDSDomainController `
        -DomainName $DomainName `
        -Credential $cred `
        -InstallDns `
        -SafeModeAdministratorPassword $smPwd `
        -SiteName $SiteName `
        -Force `
        -NoRebootOnCompletion:$false
}
function Wait-ForAD {
    Write-Step "Waiting for Active Directory services"
    $max = 30; $count = 0
    do {
        Start-Sleep -Seconds 10
        $count++
        $adReady = Get-Service NTDS -ErrorAction SilentlyContinue
    } until (($adReady -and $adReady.Status -eq 'Running') -or $count -ge $max)
    if (-not $adReady -or $adReady.Status -ne 'Running') {
        throw "Active Directory services did not become ready in time."
    }
}
function Ensure-ReverseZone {
    Write-Step "Checking reverse lookup zone"
    Import-Module DnsServer
    $zone = Get-DnsServerZone -Name $ReverseZoneName -ErrorAction SilentlyContinue
    if (-not $zone) {
        Add-DnsServerPrimaryZone -NetworkId $ReverseNetworkId -ReplicationScope "Domain"
    }
}
function Ensure-DNSRecords {
    Write-Step "Ensuring A and PTR records for addc02"
    Import-Module DnsServer
    $aRecord = Get-DnsServerResourceRecord -ZoneName $DomainName -Name $ComputerName -RRType "A" -ErrorAction SilentlyContinue
    if (-not $aRecord) {
        Add-DnsServerResourceRecordA -ZoneName $DomainName -Name $ComputerName -IPv4Address $ServerIPv4
    }
    $lastOctet = ($ServerIPv4 -split '\.')[-1]
    $existingPTR = Get-DnsServerResourceRecord -ZoneName $ReverseZoneName -Name $lastOctet -RRType PTR -ErrorAction SilentlyContinue
    if (-not $existingPTR) {
        Add-DnsServerResourceRecordPtr -ZoneName $ReverseZoneName -Name $lastOctet -PtrDomainName "$ComputerName.$DomainName"
    }
}
function Set-DNSForwarders {
    Write-Step "Configuring DNS forwarders"
    Import-Module DnsServer
    $current = (Get-DnsServerForwarder -ErrorAction SilentlyContinue).IPAddress.IPAddressToString
    if ((@($current) -join ",") -ne (@($DnsForwarders) -join ",")) {
        Set-DnsServerForwarder -IPAddress $DnsForwarders -UseRecurse $true
    }
}
function Set-PostPromotionDNSClient {
    Write-Step "Configuring post-promotion DNS client settings"
    $adapter = Get-NetAdapter | Where-Object Status -eq "Up" | Sort-Object ifIndex | Select-Object -First 1
    if (-not $adapter) { throw "No active network adapter found." }
    Set-DnsClientServerAddress -InterfaceIndex $adapter.ifIndex -ServerAddresses $PostPromotionDNS
}
function Add-CheckResult {
    param([string]$Name,[bool]$Passed,[string]$Detail)
    [PSCustomObject]@{ Check=$Name; Status=$(if($Passed){"PASS"}else{"FAIL"}); Detail=$Detail }
}
function Final-Checks {
    Write-Step "Final validation summary"
    Import-Module ActiveDirectory
    Import-Module DnsServer
    $results = @()
    $results += Add-CheckResult "Hostname" ($env:COMPUTERNAME -eq $ComputerName) $env:COMPUTERNAME
    try {
        $domain = Get-ADDomain
        $results += Add-CheckResult "Domain reachable" ($domain.DNSRoot -eq $DomainName) $domain.DNSRoot
    } catch {
        $results += Add-CheckResult "Domain reachable" $false $_.Exception.Message
    }
    $dcJoined = (Get-CimInstance Win32_ComputerSystem).PartOfDomain
    $results += Add-CheckResult "Domain joined" $dcJoined $((Get-CimInstance Win32_ComputerSystem).Domain)
    $aRecord = Get-DnsServerResourceRecord -ZoneName $DomainName -Name $ComputerName -RRType "A" -ErrorAction SilentlyContinue
    $results += Add-CheckResult "A record addc02" ([bool]$aRecord) "$ComputerName.$DomainName"
    $rev = Get-DnsServerZone -Name $ReverseZoneName -ErrorAction SilentlyContinue
    $results += Add-CheckResult "Reverse zone" ([bool]$rev) $ReverseZoneName
    $lastOctet = ($ServerIPv4 -split '\.')[-1]
    $ptr = Get-DnsServerResourceRecord -ZoneName $ReverseZoneName -Name $lastOctet -RRType PTR -ErrorAction SilentlyContinue
    $results += Add-CheckResult "PTR record addc02" ([bool]$ptr) $ServerIPv4
    try {
        $repl = repadmin /replsummary 2>&1 | Out-String
        $results += Add-CheckResult "Replication summary ran" $true "repadmin /replsummary completed"
    } catch {
        $results += Add-CheckResult "Replication summary ran" $false $_.Exception.Message
    }
    $currentForwarders = (Get-DnsServerForwarder -ErrorAction SilentlyContinue).IPAddress.IPAddressToString
    $forwardersOk = ((@($currentForwarders) -join ",") -eq (@($DnsForwarders) -join ","))
    $results += Add-CheckResult "DNS forwarders" $forwardersOk (@($currentForwarders) -join ", ")
    $results | Format-Table -AutoSize
    $failCount = @($results | Where-Object Status -eq "FAIL").Count
    if ($failCount -eq 0) {
        Write-Host "`nDC02 build summary: SUCCESS" -ForegroundColor Green
    } else {
        Write-Host "`nDC02 build summary: COMPLETED WITH ISSUES ($failCount failed checks)" -ForegroundColor Yellow
    }
}
switch ($Stage) {
    "Stage0" {
        Write-Step "Stage 0 starting"
        Ensure-StaticIP -DnsServers $InitialPreferredDNS
        Disable-Firewall
        Disable-IESecurity
        Enable-RDP
        Set-TimeConfig
        Ensure-HostNameOrReboot
        Wait-ForDNSAndDC
        Join-DomainAndReboot
    }
    "Stage1" {
        Write-Step "Stage 1 starting"
        Remove-StartupTask -TaskName $TaskStage1
        Ensure-StaticIP -DnsServers $InitialPreferredDNS
        Disable-Firewall
        Disable-IESecurity
        Enable-RDP
        Set-TimeConfig
        Wait-ForDNSAndDC
        Join-DomainAndReboot
        Install-ADDSAndPromote
    }
    "Stage2" {
        Write-Step "Stage 2 starting"
        Remove-StartupTask -TaskName $TaskStage2
        Ensure-StaticIP -DnsServers $InitialPreferredDNS
        Disable-Firewall
        Disable-IESecurity
        Enable-RDP
        Set-TimeConfig
        Wait-ForDNSAndDC
        Install-ADDSAndPromote
    }
    "Stage3" {
        Write-Step "Stage 3 starting"
        Remove-StartupTask -TaskName $TaskStage3
        Wait-ForAD
        Set-PostPromotionDNSClient
        Ensure-ReverseZone
        Ensure-DNSRecords
        Set-DNSForwarders
        Final-Checks
    }
}
Stop-Transcript | Out-Null

If all goes well you should now be up and running with 2 synced DC/AD/DNS servers for your lab.

The last thing was DNS records.

i was missing PTR record for my mgmt subnet, so i had to create that.

Add-DnsServerPrimaryZone -NetworkId "10.3.10.0/24" -ReplicationScope "Domain"

then i could run an import of all the different VCF services. I ran this on my addc01 server to easily prepare for the VCF install.

This creates an A record with PTR

Import-Module DnsServer
$ZoneName = "lab.local"
$ReverseZone = "10.168.192.in-addr.arpa"
$Records = @(
    @{ Name = "mgmt01"; IP = "192.168.10.20" }
    @{ Name = "vc01";   IP = "192.168.10.21" }
    @{ Name = "host01"; IP = "192.168.10.22" }
    @{ Name = "host02"; IP = "192.168.10.23" }
    @{ Name = "host03"; IP = "192.168.10.24" }
    @{ Name = "host04"; IP = "192.168.10.25" }
    @{ Name = "host05"; IP = "192.168.10.26" }
    @{ Name = "host06"; IP = "192.168.10.27" }
    @{ Name = "host07"; IP = "192.168.10.28" }
    @{ Name = "host08"; IP = "192.168.10.29" }
    @{ Name = "ops01";  IP = "192.168.10.30" }
    @{ Name = "ops02";  IP = "192.168.10.31" }
    @{ Name = "ops03";  IP = "192.168.10.32" }
    @{ Name = "auto01"; IP = "192.168.10.33" }
    @{ Name = "log01";  IP = "192.168.10.34" }
    @{ Name = "net01";  IP = "192.168.10.35" }
    @{ Name = "repo01"; IP = "192.168.10.36" }
    @{ Name = "svc01";  IP = "192.168.10.37" }
    @{ Name = "idm01";  IP = "192.168.10.38" }
    @{ Name = "idm02";  IP = "192.168.10.39" }
    @{ Name = "idm03";  IP = "192.168.10.40" }
    @{ Name = "dns01";  IP = "192.168.10.41" }
    @{ Name = "dns02";  IP = "192.168.10.42" }
    @{ Name = "gw01";   IP = "192.168.10.43" }
    @{ Name = "gw02";   IP = "192.168.10.44" }
    @{ Name = "jump01"; IP = "192.168.10.45" }
    @{ Name = "backup01"; IP = "192.168.10.46" }
    @{ Name = "proxy01";  IP = "192.168.10.47" }
    @{ Name = "edge01";   IP = "192.168.10.48" }
    @{ Name = "edge02";   IP = "192.168.10.49" }
)
foreach ($rec in $Records) {
    $existingA = Get-DnsServerResourceRecord -ZoneName $ZoneName -Name $rec.Name -RRType "A" -ErrorAction SilentlyContinue
    if (-not $existingA) {
        Add-DnsServerResourceRecordA `
            -ZoneName $ZoneName `
            -Name $rec.Name `
            -IPv4Address $rec.IP
        Write-Host "Created A record: $($rec.Name).$ZoneName -> $($rec.IP)"
    }
    else {
        Write-Host "A record already exists: $($rec.Name).$ZoneName"
    }
}
foreach ($rec in $Records) {
    $lastOctet = ($rec.IP -split '\.')[-1]
    $fqdn = "$($rec.Name).$ZoneName"
    $existingPTR = Get-DnsServerResourceRecord -ZoneName $ReverseZone -Name $lastOctet -RRType "PTR" -ErrorAction SilentlyContinue
    if (-not $existingPTR) {
        Add-DnsServerResourceRecordPtr `
            -ZoneName $ReverseZone `
            -Name $lastOctet `
            -PtrDomainName $fqdn
        Write-Host "Created PTR record: $($rec.IP) -> $fqdn"
    }
    else {
        Write-Host "PTR record already exists for: $($rec.IP)"
    }
}
Write-Host ""
Write-Host "Verification:" -ForegroundColor Cyan
foreach ($rec in $Records) {
    $fqdn = "$($rec.Name).$ZoneName"
    try {
        Resolve-DnsName $fqdn -ErrorAction Stop | Out-Null
        Write-Host "Resolved OK: $fqdn"
    }
    catch {
        Write-Host "Resolution failed: $fqdn" -ForegroundColor Yellow
    }
}

Ok , now we are ready for the next step, which is nested host-install.

Comments

Leave a comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Back to top of page
